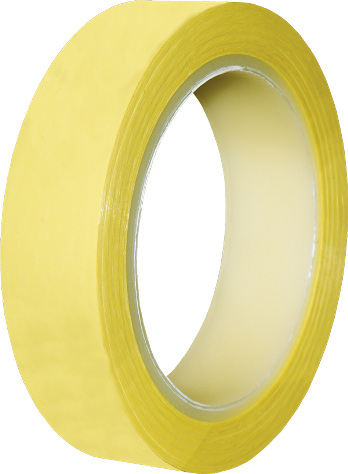

ET1350 POLYESTER BANT




Polyester Bantlar





EP1350 IS A FLAME RETARDANT TAPE WHICH COMPLIES WITH UL FLAME RETARDANT

REQUIREMENTS. HAS FLAGGING AND SOLVENT RESISTANCE

APPLICATIONS:

FINAL WRAPPING OF CAST RESIN CAPACITORS AND FILM/FOIL CAPACITORS.

PHASE AND COIL-END INSULATION.STRENGTHENING OF EDGES FOR SLOT INSULATION AND SLOT

INSULATION IN GENERAL.SEALING CONNECTION LEADS FOR FINAL INSULATION.

CORE, LAYER AND FINAL INSULATION OF SMALL TRANSFORMER, RELAY AND CHOKING COILS.

PROPERTIES                                                        DIN VALUES:                                  ASTM VALUES:

SUPPORTING BASE: POLYESTER FILM

BASE THICKNESS:                                                 0.025MM                                            1.0 MIL

TOTAL THICKNESS:                                               0.060MM                                             2.4 MIL

ADHESIVE:               THERMOSETTING POLYACRYLATE

ADHESIVE STRENGTH:                                          4 N/CM                                              36 OZ/INCH

ULTIMATE ELONGATION:                                      80-120%                                             80-120%

TENSILE STRENGTH:                                            40 N/CM                                             23 LBS/INCH

DIELECTRIC STRENGTH:                                     5000 VOLTS                                       5000 VOLTS

ELECTROLYTIC CORROSION FACTOR*:                   A 1.0                                                 A 1.0

ADHESIVE COATING:  SINGLE FACED

COLOUR: YELLOW, BLACK, RED, MILKY WHITE

HEAT CLASS: B (TEMPERATURE RANGE UP TO 130oC)

RECOMMENDED CURING CYCLE: 1 HOUR AT 150oC OR  2 HOURS AT 130oC
